Horizontal glass tempering furnace

Your current location: Home >> Products >> Glass tempering furnace

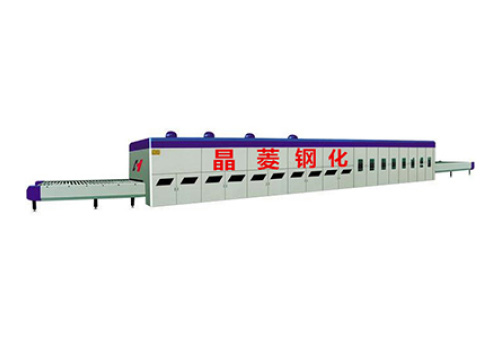

Horizontal glass tempering furnace

  • Classification:Glass tempering furnace

  • Clicks:
  • Release date:2018/11/08
  • 在線詢價(jià)
  • Detailed introduction

水平玻璃鋼化爐

Flat steel:

The maximum specification is 1200mm * 3500mm (3-19mm).

Minimum specification 300mm * 200mm

Glass thickness 3mm--19mm

Production capacity is 60 /h (5mm meter).

Electricity consumption is less than 4 degrees per square meter (5mm meter).

The combined yield is greater than 98%.

Heating power 420KW

Fan power 110-135KW

Power supply capacity 500KVA


The quality is up to GB9963-1998 standard.

The bow deformation is less than 1.0/1000mm; the waveform distortion is less than 0.8/1000mm

The wind spot is invisible on a single sheet (1000mm observation distance, natural light, angle with glass surface greater than 15 degrees, naked eye observation)

Air compressor (user supply) flow 5M3 / min, maximum pressure 1Mpa, power 35KW

Gas tank (user supply) withstand voltage 1Mpa, working pressure 0.8Mpa, volume 3M3

Installation and use area is 15 meters long, 4.5 meters wide and weight: 7-8 tons.


2. Description of main parts of toughened units

Serial number description / origin

1. ceramic roller table Jiangsu or Fujian

2. main drive variable frequency motor Jiangsu or Guangdong

3. outer thermal insulation material, Japan, Suzhou

4. bearings ha, WA, lo

5. aromatic Shanghai

6. fan Jiangsu or Guangdong

7. industrial control computer Advantech or research

8. temperature acquisition board Advantech or research

9. solid relay trigger plate Jiangsu

10.I/O input and output board SIEMENS

11.PLC programmable controller SIEMENS

12.CPU SIEMENS

13. input module SIEMENS

14. output module SIEMENS

15. DAC module SIEMENS

16. grating encoder OMRON

17. proximity switch Korea

18. photoelectric switch OMRON

19. intelligent output board HNT

20. circuit breaker Guangdong

21. thermal relay Guangdong

22. knob Guangdong

23. button Guangdong

24. inverter (10KW below) Guangdong

25. fan inverter Guangdong

26. contactor Guangdong

27. stroke switch CHAT (CHINT)

28. limit switch CHAT (CHINT)

29. solid state relay 80A to 120A Wuxi solid

30. solid state relay 5A Wuxi solid

31. switching power supply 24V /12V CHAT (CHINT)

32. signal lamp CHAT (CHINT)


3. Spare parts list for toughened units

Serial number, specification, type, unit quantity, remarks

1. upper furnace wire porcelain tube (1) L=1166 5

2. upper furnace wire T porcelain tube (1) L=320 5

3. furnace wire type I 205*1200 2

4. belt pulley (upper / lower) 2

5. roller aligning bearing (model) set 2

6. single row chain 08B M 2 with 2 connectors.

7. three row chain 06B-2 M 2 with 2 connectors.

8.PU tube diameter 12 m 10

9.PU tube diameter 8 M 10

10. seamless belt 8 5

11. insulation blanket 1

12. ceiling connection Porcelain Parts 2

13. top connection bolt sleeve 2

14. bearing UC206 set 1

15. bearing UC209 set 1

16. roller bearing bushing 2

17. canvas bag 1

18. quick connector 2

19. universal wheel 10

20. thermocouple 3* 5.

21. insurance (core) RT18-32X 4A 4

22. insurance (core) RT18-32X 2A 4

23. solid state relay 120A 1

24. solid state relay 100A 1

25. solid state relay 80A 4

26. fast fuse RS31 80A 5

27. fast fuse RS31 63A 5

28. fast fuse RS31 40A 5

29. ceramic roller 1
